KA127減速機重量：KA127減速機重量379公斤，KA127減速機與電機重量分別如下

KA127減速機與5.5KW電機重量439公斤，KA127減速機與7.5KW電機重量452公斤，KA127減速機與11KW電機重量494公斤，KA127減速機與15KW電機重量514公斤，KA127減速機與18.5KW電機重量551公斤，KA127減速機與22KW電機重量564公斤，KA127減速機與30KW電機重量632公斤，KA127減速機與37KW電機重量679公斤，KA127減速機與45KW電機重量714公斤，KA127減速機與55KW電機重量799公斤，KA127減速機與75KW電機重量907公斤，KA127減速機與90KW電機重量1047公斤。直角減速機

KA127減速機加油量：可加齒輪油

KA127減速機M3方式安裝加43L，KA127減速機M2方式安裝加41.5L，KA127減速機M1方式安裝加21L，KA127減速機M4方式安裝加52L，KA127減速機M5方式安裝加40L，KA127減速機M6方式安裝加40L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

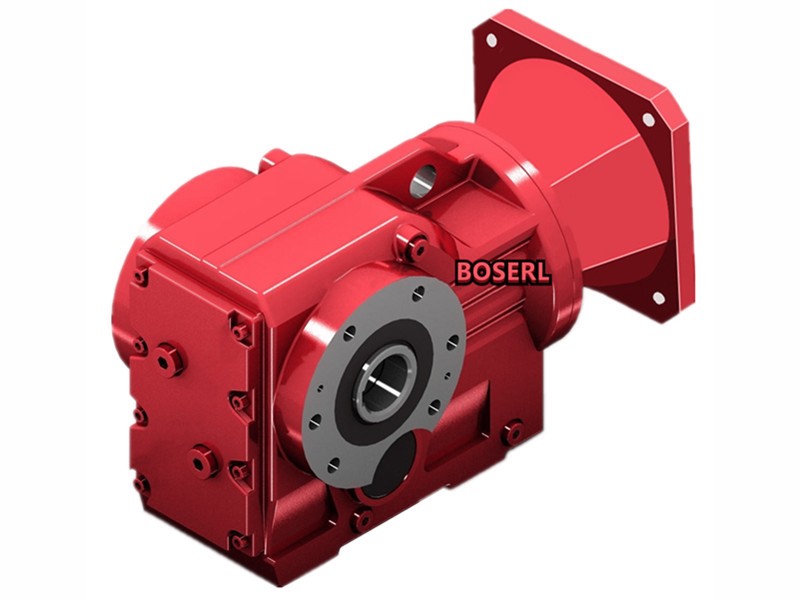

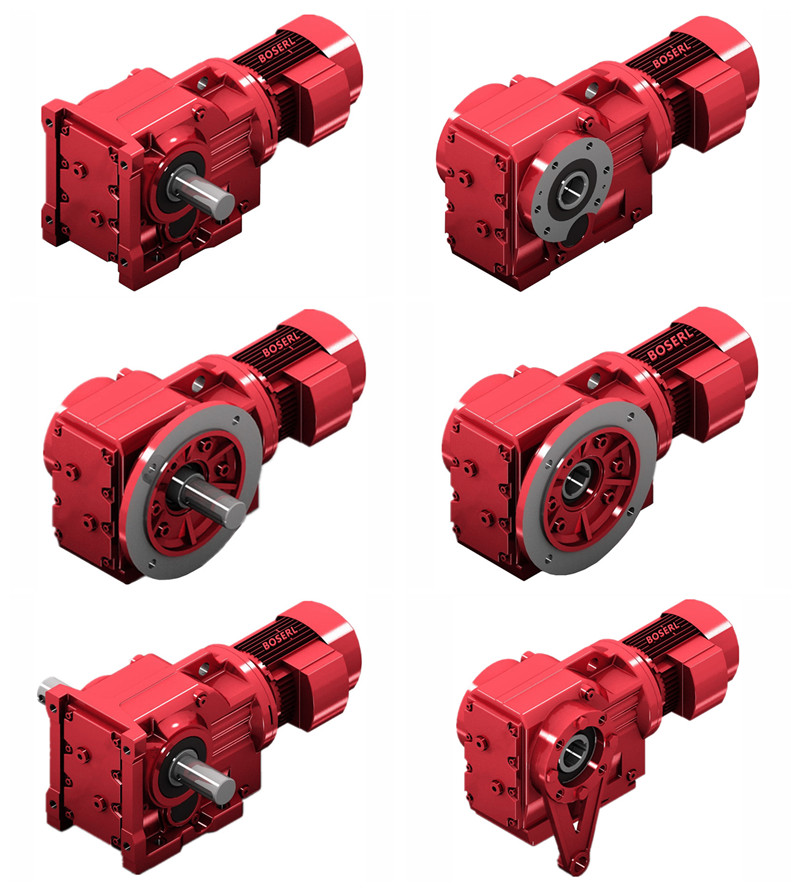

KA127減速機實物圖：圖一為KA127臥式方式安裝空心軸螺旋錐齒輪減速電機，圖二K127臥式方式安裝螺旋錐齒輪減速電機，圖三為KF127立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖四為KAF127立式方式安裝直角空心軸螺旋錐齒輪減速機。

KA127減速機型號表示方法：

KA127減速機型號結構KA127-B55KW-4P-減速比-方式安裝方式-接線盒位置。

KA127減速機性能參數表結構說明：C防雨罩，V強制冷卻風扇，RS逆止器，Input Configuration代表輸入與置，TF電機熱保護裝置，KA127，K127，KF127，KAF127減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置與自鎖功能。空心軸減速機

KA127減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KA127減速機參數：

KA127減速機減速比146.07比，136.14比，122.48比，110.18比，89.89比，81.98比，70.95比，62.60比，54.07比，47.82比，40.19比，36.25比，31.37比，27.68比，23.91比，21.15比，17.77比，14.35比，12.79比，10.74比，8.68比

KA127減速機輸出轉數9.6轉，10轉，11轉，13轉，16轉，17轉，20轉，22轉，26轉，29轉，35轉，39轉，45轉，51轉，59轉，66轉，79轉，98轉，109轉，130轉，161轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KA127減速機電機可與單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KA127與5.5KW，KA127與7.5KW，KA127與11KW，KA127與15KW，KA127與18.5KW，KA127與22KW，KA127與30KW，KA127與37KW，KA127與45KW，KA127與55KW，KA127與75KW，KA127與90KW。

KA127減速機輸出扭矩13000N.m，12100N.m，8530N.m，8000N.m，7230N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

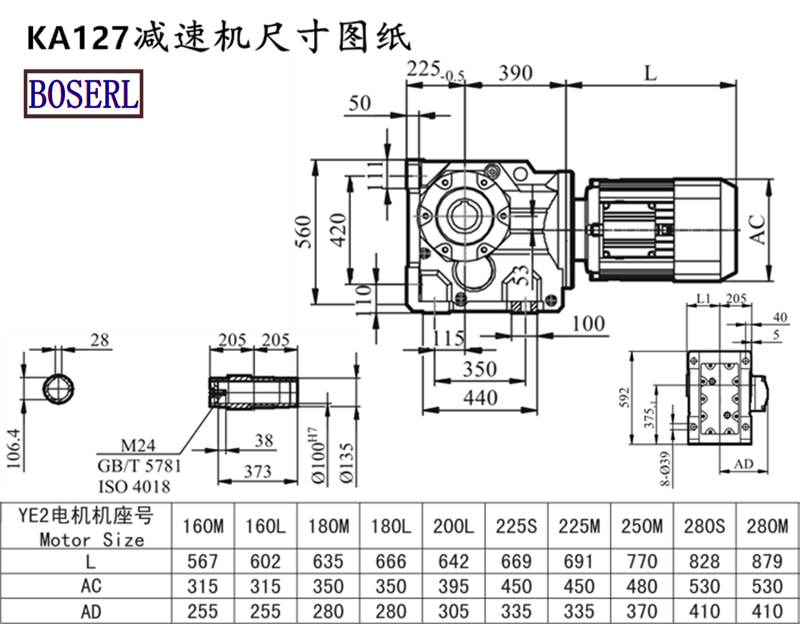

KA127減速機安裝尺寸：高560*寬400*長615

KA127減速機型號：KA127AQA80,KA127AQA100,KA127AQA115,KA127AQA140,KA127AQA160,KA127AQA190,KA127AQH80,KA127AQH100,KA127AQH115,KA127AQH140,KA127AQH160,KA127AQH190,JRTKA127-Y112M4,JRTKA127-Y11KW,JRTKA127-Y132M4,JRTKA127-Y15KW,JRTKA127-Y160M4,JRTKA127-Y18.5KW,JRTKA127-Y180M4,JRTKA127-Y200M4,JRTKA127-Y225M4,JRTKA127-Y22KW,JRTKA127-Y250M4,JRTKA127-Y280M4,JRTKA127-Y30KW,JRTKA127-Y37KW,JRTKA127-Y45KW,JRTKA127-Y4KW,JRTKA127-Y5.5KW,JRTKA127-Y55KW,JRTKA127-Y7.5KW,JRTKA127-Y75KW,JRTKA127-YEJ112M4,JRTKA127-YEJ132M4,JRTKA127-YEJ160M4,JRTKA127-YEJ180M4,JRTKA127-YEJ200M4,JRTKA127-YEJ225M4,JRTKA127-YEJ250M4,JRTKA127-YEJ280M4,JRTKA127-YS112M4,JRTKA127-YS132M4,JRTKA127-YS160M4,JRTKA127-YS180M4,JRTKA127-YS200M4,JRTKA127-YS225M4,JRTKA127-YS250M4,JRTKA127-YS280M4,JRTKA127-YVP112M4,JRTKA127-YVP132M4,JRTKA127-YVP160M4,JRTKA127-YVP180M4,JRTKA127-YVP200M4,JRTKA127-YVP225M4,JRTKA127-YVP250M4,JRTKA127-YVP280M4,JRTKA127-YVPEJ112M4,JRTKA127-YVPEJ132M4,JRTKA127-YVPEJ160M4,JRTKA127-YVPEJ180M4,JRTKA127-YVPEJ200M4,JRTKA127-YVPEJ225M4,JRTKA127-YVPEJ250M4,JRTKA127-YVPEJ280M4,EWKA127-Y112M4,EWKA127-Y11KW,EWKA127-Y132M4,EWKA127-Y15KW,EWKA127-Y160M4,EWKA127-Y18.5KW,EWKA127-Y180M4,EWKA127-Y200M4,EWKA127-Y225M4,EWKA127-Y22KW,EWKA127-Y250M4,EWKA127-Y280M4,EWKA127-Y30KW,EWKA127-Y37KW,EWKA127-Y45KW,EWKA127-Y4KW,EWKA127-Y5.5KW,EWKA127-Y55KW,EWKA127-Y7.5KW,EWKA127-Y75KW,EWKA127-YEJ112M4,EWKA127-YEJ132M4,EWKA127-YEJ160M4,EWKA127-YEJ180M4,EWKA127-YEJ200M4,EWKA127-YEJ225M4,EWKA127-YEJ250M4,EWKA127-YEJ280M4,EWKA127-YS112M4,EWKA127-YS132M4,EWKA127-YS160M4,EWKA127-YS180M4,EWKA127-YS200M4,EWKA127-YS225M4,EWKA127-YS250M4,EWKA127-YS280M4,EWKA127-YVP112M4,EWKA127-YVP132M4,EWKA127-YVP160M4,EWKA127-YVP180M4,EWKA127-YVP200M4,EWKA127-YVP225M4,EWKA127-YVP250M4,EWKA127-YVP280M4,EWKA127-YVPEJ112M4,EWKA127-YVPEJ132M4,EWKA127-YVPEJ160M4,EWKA127-YVPEJ180M4,EWKA127-YVPEJ200M4,EWKA127-YVPEJ225M4,EWKA127-YVPEJ250M4,EWKA127-YVPEJ280M4,SLKA127-Y112M4,SLKA127-Y11KW,SLKA127-Y132M4,SLKA127-Y15KW,SLKA127-Y160M4,SLKA127-Y18.5KW,SLKA127-Y180M4,SLKA127-Y200M4,SLKA127-Y225M4,SLKA127-Y22KW,SLKA127-Y250M4,SLKA127-Y280M4,SLKA127-Y30KW,SLKA127-Y37KW,SLKA127-Y45KW,SLKA127-Y4KW,SLKA127-Y5.5KW,SLKA127-Y55KW,SLKA127-Y7.5KW,SLKA127-Y75KW,SLKA127-YEJ112M4,SLKA127-YEJ132M4,SLKA127-YEJ160M4,SLKA127-YEJ180M4,SLKA127-YEJ200M4,SLKA127-YEJ225M4,SLKA127-YEJ250M4,SLKA127-YEJ280M4,SLKA127-YS112M4,SLKA127-YS132M4,SLKA127-YS160M4,SLKA127-YS180M4,SLKA127-YS200M4,SLKA127-YS225M4,SLKA127-YS250M4,SLKA127-YS280M4,SLKA127-YVP112M4,SLKA127-YVP132M4,SLKA127-YVP160M4,SLKA127-YVP180M4,SLKA127-YVP200M4,SLKA127-YVP225M4,SLKA127-YVP250M4,SLKA127-YVP280M4,SLKA127-YVPEJ112M4,SLKA127-YVPEJ132M4,SLKA127-YVPEJ160M4,SLKA127-YVPEJ180M4,SLKA127-YVPEJ200M4,SLKA127-YVPEJ225M4,SLKA127-YVPEJ250M4,SLKA127-YVPEJ280M4,DSZKA127-Y112M4,DSZKA127-Y11KW,DSZKA127-Y132M4,DSZKA127-Y15KW,DSZKA127-Y160M4,DSZKA127-Y18.5KW,DSZKA127-Y180M4,DSZKA127-Y200M4,DSZKA127-Y225M4,DSZKA127-Y22KW,DSZKA127-Y250M4,DSZKA127-Y280M4,DSZKA127-Y30KW,DSZKA127-Y37KW,DSZKA127-Y45KW,DSZKA127-Y4KW,DSZKA127-Y5.5KW,DSZKA127-Y55KW,DSZKA127-Y7.5KW,DSZKA127-Y75KW,DSZKA127-YEJ112M4,DSZKA127-YEJ132M4,DSZKA127-YEJ160M4,DSZKA127-YEJ180M4,DSZKA127-YEJ200M4,DSZKA127-YEJ225M4,DSZKA127-YEJ250M4,DSZKA127-YEJ280M4,DSZKA127-YS112M4,DSZKA127-YS132M4,DSZKA127-YS160M4,DSZKA127-YS180M4,DSZKA127-YS200M4,DSZKA127-YS225M4,DSZKA127-YS250M4,DSZKA127-YS280M4,DSZKA127-YVP112M4,DSZKA127-YVP132M4,DSZKA127-YVP160M4,DSZKA127-YVP180M4,DSZKA127-YVP200M4,DSZKA127-YVP225M4,DSZKA127-YVP250M4,DSZKA127-YVP280M4,DSZKA127-YVPEJ112M4,DSZKA127-YVPEJ132M4,DSZKA127-YVPEJ160M4,DSZKA127-YVPEJ180M4,DSZKA127-YVPEJ200M4,DSZKA127-YVPEJ225M4,DSZKA127-YVPEJ250M4,DSZKA127-YVPEJ280M4,BKA127-Y112M4,BKA127-Y11KW,BKA127-Y132M4,BKA127-Y15KW,BKA127-Y160M4,BKA127-Y18.5KW,BKA127-Y180M4,BKA127-Y200M4,BKA127-Y225M4,BKA127-Y22KW,BKA127-Y250M4,BKA127-Y280M4,BKA127-Y30KW,BKA127-Y37KW,BKA127-Y45KW,BKA127-Y4KW,BKA127-Y5.5KW,BKA127-Y55KW,BKA127-Y7.5KW,BKA127-Y75KW,BKA127-YEJ112M4,BKA127-YEJ132M4,BKA127-YEJ160M4,BKA127-YEJ180M4,BKA127-YEJ200M4,BKA127-YEJ225M4,BKA127-YEJ250M4,BKA127-YEJ280M4,BKA127-YS112M4,BKA127-YS132M4,BKA127-YS160M4,BKA127-YS180M4,BKA127-YS200M4,BKA127-YS225M4,BKA127-YS250M4,BKA127-YS280M4,BKA127-YVP112M4,BKA127-YVP132M4,BKA127-YVP160M4,BKA127-YVP180M4,BKA127-YVP200M4,BKA127-YVP225M4,BKA127-YVP250M4,BKA127-YVP280M4,BKA127-YVPEJ112M4,BKA127-YVPEJ132M4,BKA127-YVPEJ160M4,BKA127-YVPEJ180M4,BKA127-YVPEJ200M4,BKA127-YVPEJ225M4,BKA127-YVPEJ250M4,BKA127-YVPEJ280M4,GKA127-Y112M4,GKA127-Y11KW,GKA127-Y132M4,GKA127-Y15KW,GKA127-Y160M4,GKA127-Y18.5KW,GKA127-Y180M4,GKA127-Y200M4,GKA127-Y225M4,GKA127-Y22KW,GKA127-Y250M4,GKA127-Y280M4,GKA127-Y30KW,GKA127-Y37KW,GKA127-Y45KW,GKA127-Y4KW,GKA127-Y5.5KW,GKA127-Y55KW,GKA127-Y7.5KW,GKA127-Y75KW,GKA127-YEJ112M4,GKA127-YEJ132M4,GKA127-YEJ160M4,GKA127-YEJ180M4,GKA127-YEJ200M4,GKA127-YEJ225M4,GKA127-YEJ250M4,GKA127-YEJ280M4,GKA127-YS112M4,GKA127-YS132M4,GKA127-YS160M4,GKA127-YS180M4,GKA127-YS200M4,GKA127-YS225M4,GKA127-YS250M4,GKA127-YS280M4,GKA127-YVP112M4,GKA127-YVP132M4,GKA127-YVP160M4,GKA127-YVP180M4,GKA127-YVP200M4,GKA127-YVP225M4,GKA127-YVP250M4,GKA127-YVP280M4,GKA127-YVPEJ112M4,GKA127-YVPEJ132M4,GKA127-YVPEJ160M4,GKA127-YVPEJ180M4,GKA127-YVPEJ200M4,GKA127-YVPEJ225M4,GKA127-YVPEJ250M4,GKA127-YVPEJ280M4,KCA127-Y112M4,KCA127-Y11KW,KCA127-Y132M4,KCA127-Y15KW,KCA127-Y160M4,KCA127-Y18.5KW,KCA127-Y180M4,KCA127-Y200M4,KCA127-Y225M4,KCA127-Y22KW,KCA127-Y250M4,KCA127-Y280M4,KCA127-Y30KW,KCA127-Y37KW,KCA127-Y45KW,KCA127-Y4KW,KCA127-Y5.5KW,KCA127-Y55KW,KCA127-Y7.5KW,KCA127-Y75KW,KCA127-YEJ112M4,KCA127-YEJ132M4,KCA127-YEJ160M4,KCA127-YEJ180M4,KCA127-YEJ200M4,KCA127-YEJ225M4,KCA127-YEJ250M4,KCA127-YEJ280M4,KCA127-YS112M4,KCA127-YS132M4,KCA127-YS160M4,KCA127-YS180M4,KCA127-YS200M4,KCA127-YS225M4,KCA127-YS250M4,KCA127-YS280M4,KCA127-YVP112M4,KCA127-YVP132M4,KCA127-YVP160M4,KCA127-YVP180M4,KCA127-YVP200M4,KCA127-YVP225M4,KCA127-YVP250M4,KCA127-YVP280M4,KCA127-YVPEJ112M4,KCA127-YVPEJ132M4,KCA127-YVPEJ160M4,KCA127-YVPEJ180M4,KCA127-YVPEJ200M4,KCA127-YVPEJ225M4,KCA127-YVPEJ250M4,KCA127-YVPEJ280M4,MTJA127-Y112M4,MTJA127-Y11KW,MTJA127-Y132M4,MTJA127-Y15KW,MTJA127-Y160M4,MTJA127-Y18.5KW,MTJA127-Y180M4,MTJA127-Y200M4,MTJA127-Y225M4,MTJA127-Y22KW,MTJA127-Y250M4,MTJA127-Y280M4,MTJA127-Y30KW,MTJA127-Y37KW,MTJA127-Y45KW,MTJA127-Y4KW,MTJA127-Y5.5KW,MTJA127-Y55KW,MTJA127-Y7.5KW,MTJA127-Y75KW,MTJA127-YEJ112M4,MTJA127-YEJ132M4,MTJA127-YEJ160M4,MTJA127-YEJ180M4,MTJA127-YEJ200M4,MTJA127-YEJ225M4,MTJA127-YEJ250M4,MTJA127-YEJ280M4,MTJA127-YS112M4,MTJA127-YS132M4,MTJA127-YS160M4,MTJA127-YS180M4,MTJA127-YS200M4,MTJA127-YS225M4,MTJA127-YS250M4,MTJA127-YS280M4,MTJA127-YVP112M4,MTJA127-YVP132M4,MTJA127-YVP160M4,MTJA127-YVP180M4,MTJA127-YVP200M4,MTJA127-YVP225M4,MTJA127-YVP250M4,MTJA127-YVP280M4,MTJA127-YVPEJ112M4,MTJA127-YVPEJ132M4,MTJA127-YVPEJ160M4,MTJA127-YVPEJ180M4,MTJA127-YVPEJ200M4,MTJA127-YVPEJ225M4,MTJA127-YVPEJ250M4,MTJA127-YVPEJ280M4,WXKA127-WSS112M4,WXKA127-WSS11KW,WXKA127-WSS132M4,WXKA127-WSS15KW,WXKA127-WSS160M4,WXKA127-WSS18.5KW,WXKA127-WSS180M4,WXKA127-WSS200M4,WXKA127-WSS225M4,WXKA127-WSS22KW,WXKA127-WSS250M4,WXKA127-WSS280M4,WXKA127-WSS30KW,WXKA127-WSS37KW,WXKA127-WSS45KW,WXKA127-WSS4KW,WXKA127-WSS5.5KW,WXKA127-WSS55KW,WXKA127-WSS7.5KW,WXKA127-WSS75KW,WXKA127-WSSB112M4,WXKA127-WSSB132M4,WXKA127-WSSB160M4,WXKA127-WSSB180M4,WXKA127-WSSB200M4,WXKA127-WSSB225M4,WXKA127-WSSB250M4,WXKA127-WSSB280M4,WXKA127-WSSVP112M4,WXKA127-WSSVP132M4,WXKA127-WSSVP160M4,WXKA127-WSSVP180M4,WXKA127-WSSVP200M4,WXKA127-WSSVP225M4,WXKA127-WSSVP250M4,WXKA127-WSSVP280M4,WXKA127-WSSVPB112M4,WXKA127-WSSVPB132M4,WXKA127-WSSVPB160M4,WXKA127-WSSVPB180M4,WXKA127-WSSVPB200M4,WXKA127-WSSVPB225M4,WXKA127-WSSVPB250M4,WXKA127-WSSVPB280M4。

KA127減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jjtz.com.cn/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K127減速機
